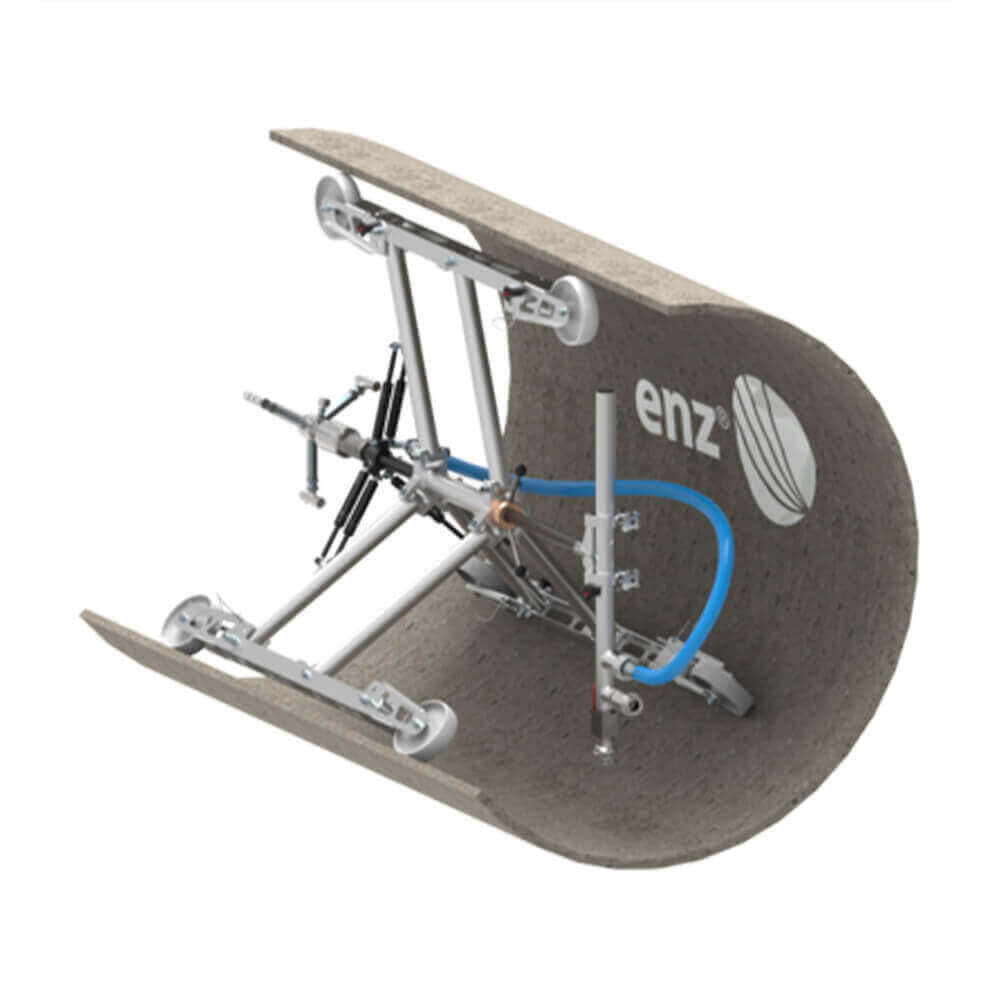

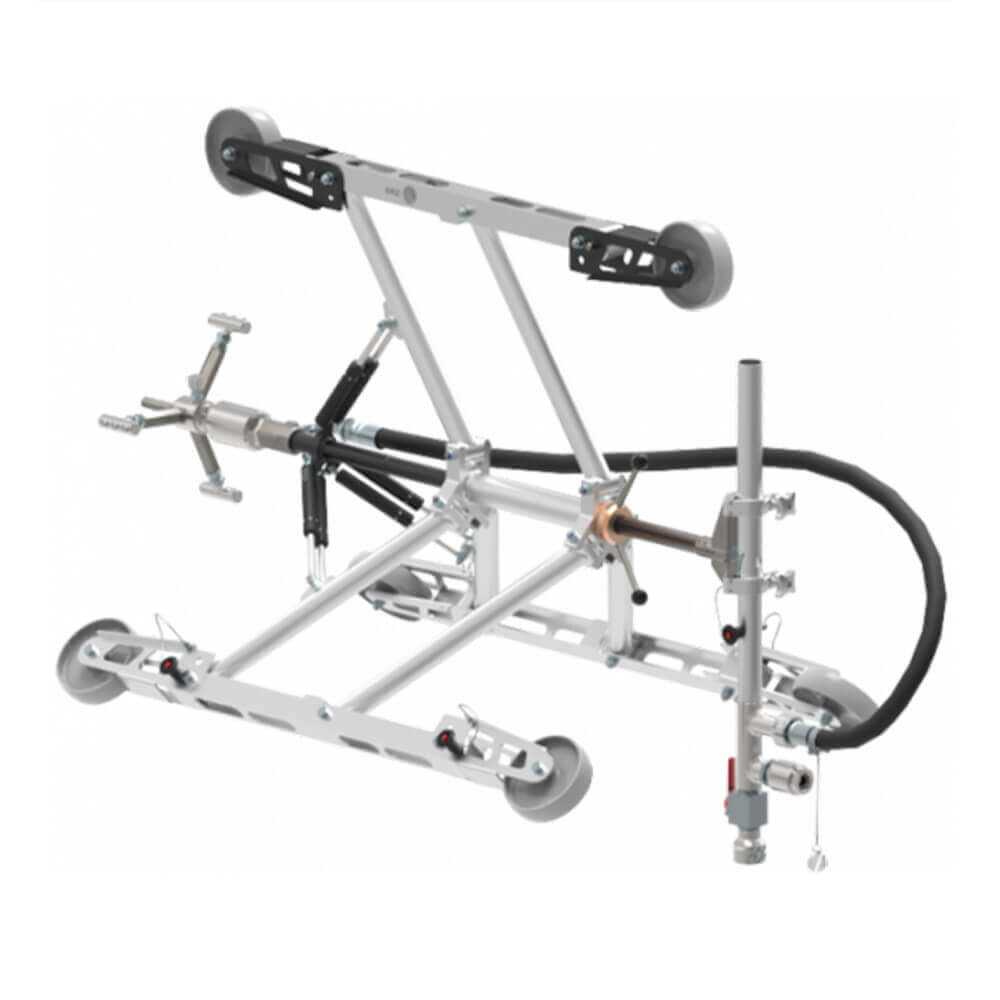

enz® Propeller Nozzle P360 600-2500mm

For the first time, you can now cover diameters ranging between 600 and 3,000 mm (24 to 120 inches) with a single nozzle. You no longer have to connect anything together to make the nozzle functional.

The P360 fits into a 600 mm manhole and is particularly light, weighing a little over 60 kilograms (130 pounds). This makes it easy to handle and transport. The propeller nozzle can be easily adjusted to suit the pipe diameter and for use with round, tapering, flat, or ovoid profiles. It’s straightforward to clean even dry weather channels. If you have only a little water available, you can simply pull the nozzle along. In addition, the P360 has an extraordinary cleaning performance, which you can see when it’s compared to a rival product (see the picture below). The new P360 is designed to be operated with recycled or fresh water.

The P360’s propeller has various options for fittings. Three propeller arms with three nozzle inserts each plus the separate rotational drive have to be adjusted to one another.



Features:

• 1 nozzle for 600 mm – 3000 mm
• Light weight
• One product for all diameters
• Easy and quick to set up
• Recyclable water
• With or without thrust
• Dry weather interior cleaning



Specifications:

• Max. pressure 200 bar / 2,900 psi
• Min. flow Min. 250 l/min / 66 gpm
• Pipe diameter 600 – 3000 mm / 24 – 118 inch
• Manhole size 600 mm / 24 inch
• Connection thread 1 BSPP, 1 1/2“ BSPP, 1 NPT, 1 1/4“ NPT
• Weight 62 kg



Please contact us for price & availability.
